1500W Sport Tennis Court Led Stadium Light Outdoor flood light

MOQ : 1 PCS

  • Housing: Pure Aluminum
  • LED: CREE 5050
  • CRI: Ra>70
  • Power Factor: >0.95
  • THD: <15
  • Driver: Inventronic or Meanwell
  • Driver Efficiency: >93%
  • Protection: OTP, OCP, OVP, SCP
  • Surge Protection: 10KV
  • Waterproof: IP66
  • Impact test:IK08
  • Electrical: 100-277V, 50/60Hz ,200-480VA
  • Operating Temperature: -40~60℃
  • Lifetime: 100,000H

Description

1500W Sport Tennis Court Led Stadium Light Outdoor flood light

Features:

1. Independent module design, faster disassembly and assembly, convenient maintenance;
2. The full power series can meet the needs of various lighting solutions;
3. The heatsink use anodizing treatment process, which is resistant to high temperature and corrosion;
4. The structure of the lamp body made of the national standard 6063 aluminum alloy material, heat dissipation performance is more efficient;
5. The lens is made of PC material with high light transmission, dustproof and waterproof, multi-angle optional, uniform light distribution;
6. The lamp body has multiple anti-shock structures, which have strong resistance to collision and impact.

Model NO.
SPL-720W-B
SPL-960W-B
Power Consumption
720W Flood light
960W Flood light
NW/Size
25.6kg/548*694*110mm
30.5kg/680*694*110mm
Luminous Flux
>115200LM
>153600LM
packing
772*628*421mm
772*760*421mm
Model NO.
SPL-1200W-B
SPL-G1500-B
Power Consumption
1200W Flood light
1500W Flood light
NW/Size
34.5kg/812*694*110mm
38.5kg/944*694*110mm
Luminous Flux
>192000LM
>230400LM
packing
892*772*421mm
1024*772*421mm
luminous efficiency
>160lm/w
Beam Angle
20/40/60/90/120/100*140°
Power factor
≥0.90
CRI
Ra>80
IP Rating
IP65
Input voltage
AC85-305V
Life span
50000h
color temperature
2700-6700K

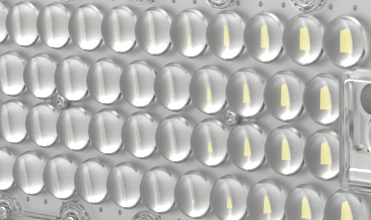

lens optional

Symmetrical PC lens:20/40/60/60/90˚
Asymmetrical PC lens:100*140˚

1060 Aluminum

Commercially pure aluminum, high aluminum content and purity, high corrosion resistance and high thermal conductivity. Outstanding performance, with excellent thermal conduction effect that general aluminum alloy can not be.

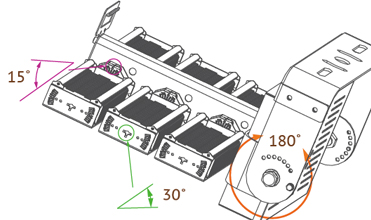

Beam angle

Module’s beam angle can be adjustable.

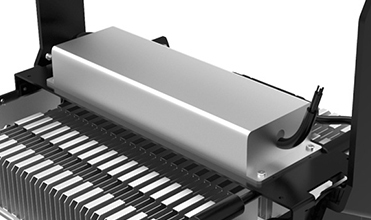

Driver Box

Intelligent temperature control branded driver used with 5 years long time warranty, aluminum drive house with IP67 waterproof, and it can fast conduct the heat from the driver to be out

sports light adjust 5.jpg

Adjust

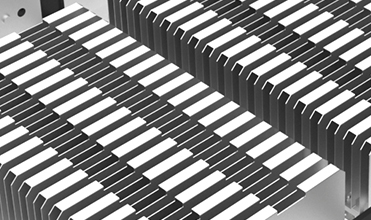

Hollow type heat dissipation

Additional information

POWER

500-1200W

INPUT

100-277VAC

IP Rating

IP66

Lamp Body Material

aluminum

Working Temperature(℃)

-40-60 degree

beam angle

30 / 60 / 90 / MBP20 / MLP30 / MBP70 / BP45

Application

Sports stadium, Outdoor sports fields
