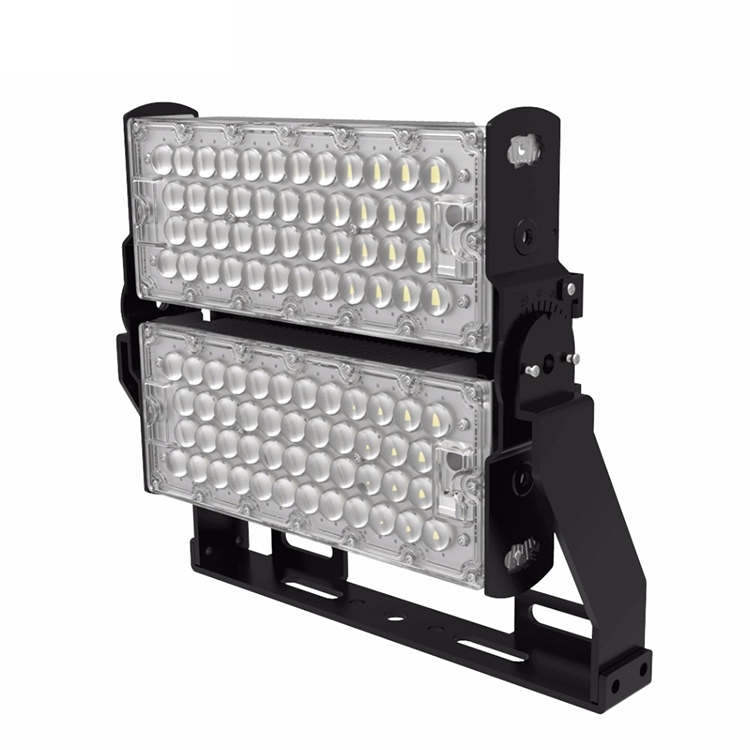

SEL Series High Power Outdoor Ip66 Waterproof LED stadium flood light

MOQ : 1 PCS

  • Housing: Pure Aluminum
  • LED: CREE 5050
  • CRI: Ra>70
  • Power Factor: >0.95
  • THD: <15
  • Driver: Inventronic or Meanwell
  • Driver Efficiency: >93%
  • Protection: OTP, OCP, OVP, SCP
  • Surge Protection: 10KV
  • Waterproof: IP66
  • Impact test:IK08
  • Electrical: 100-277V, 50/60Hz ,200-480VA
  • Operating Temperature: -40~60℃
  • Lifetime: 100,000H

Description

SEL Series High Power Outdoor Ip66 Waterproof LED stadium flood light

Features

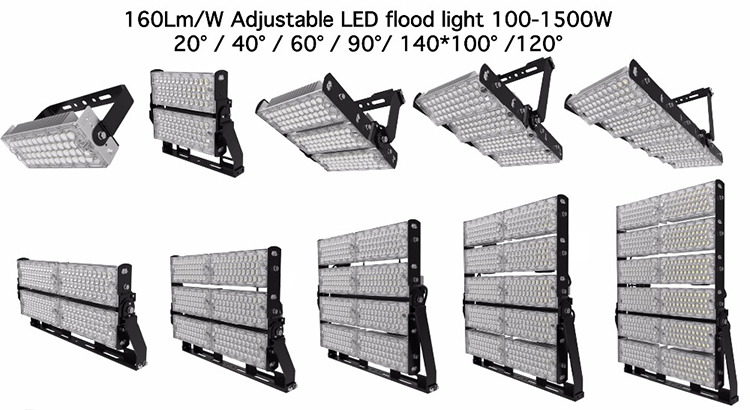

Power: 1440W/1200W/960W/800W/720W/600W/480W/400W/300W/240W/200W/120W/100W options;
Adopt with world famous high performance Meawenll driver;
Input voltage: 200-240VAC or 100-277V. (will decide input voltage accordig to the client’s country)

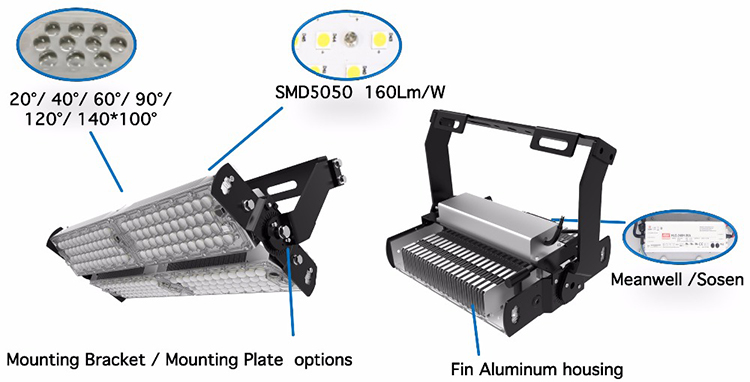

Lumileds SMD5050, Ra70;
Super bright, high effieciey 160Lm/W;
Beam angle: 20° is default (If need 40 °/ 60° / 90°/ 140*100° /120° Milky cover, please leave messags)
Fin Alumium housing for the best heat sink solutions; 20% weight lighter, easy installations;

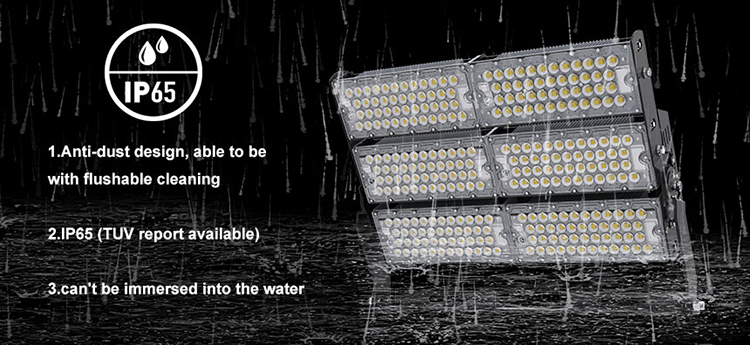

Anti-dust design,able to be with flushable cleaning;
CCT: Warm white 3000K, Natural white 4000K, Day white 5000K, Cold white: 5700K;
Working temperature: -40°C – 50°C;
Lifespan: 50,000 hours 5 years warranty;

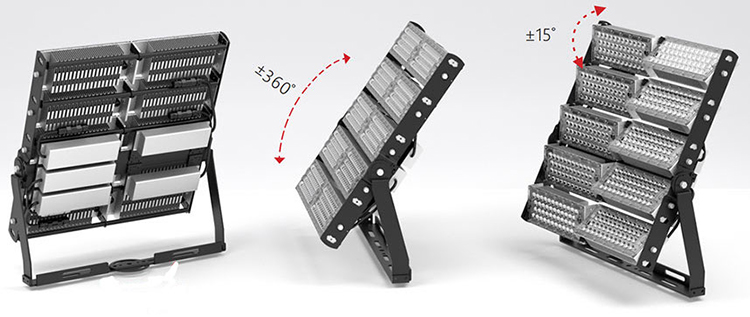

30° single LED module adjuatable, 360° adjustable for whole LED light panel;
Salt spray resistant, corrosive resistant,processed with dedicated treatments on the heat sink, can withstand corrosive and salt intensive environments.

LED stadium light



LED stadium light
LED stadium light
LED stadium light
LED stadium light
LED stadium light
LED stadium light

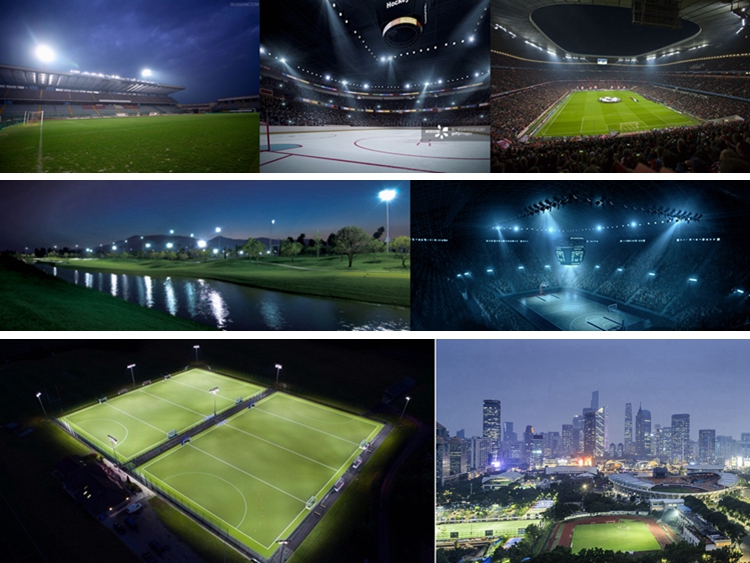

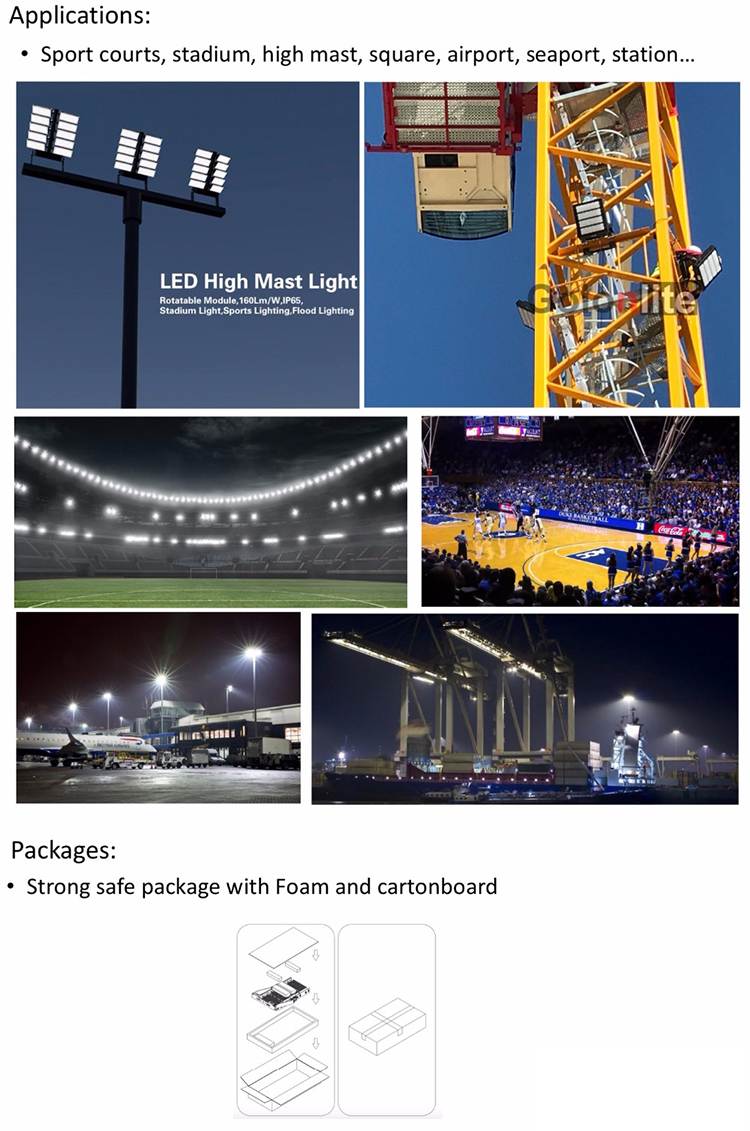

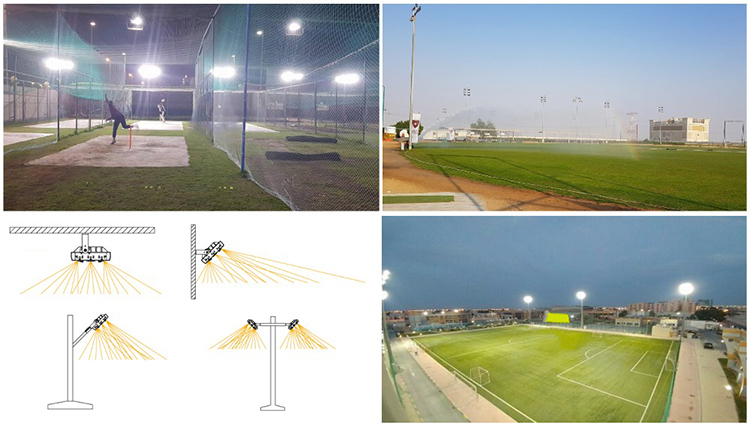

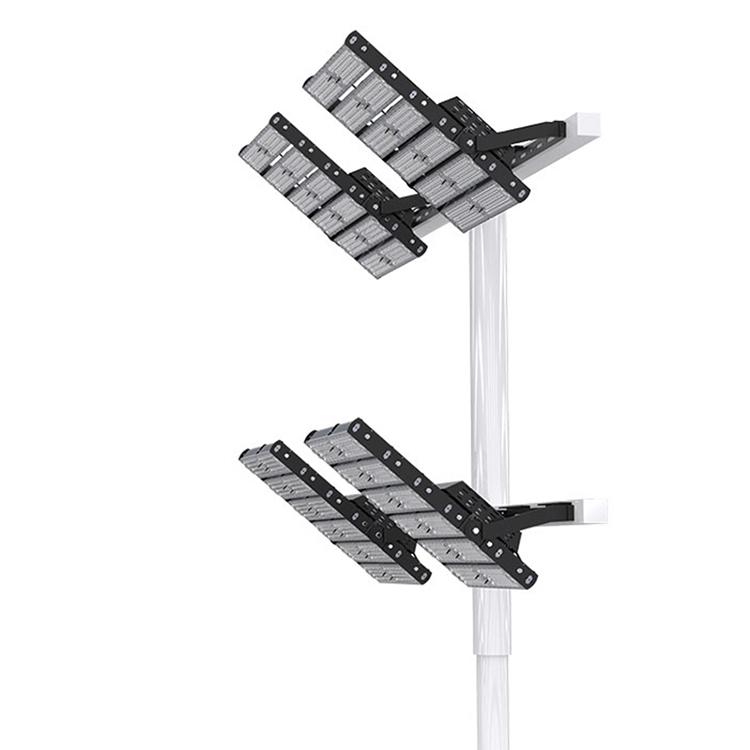

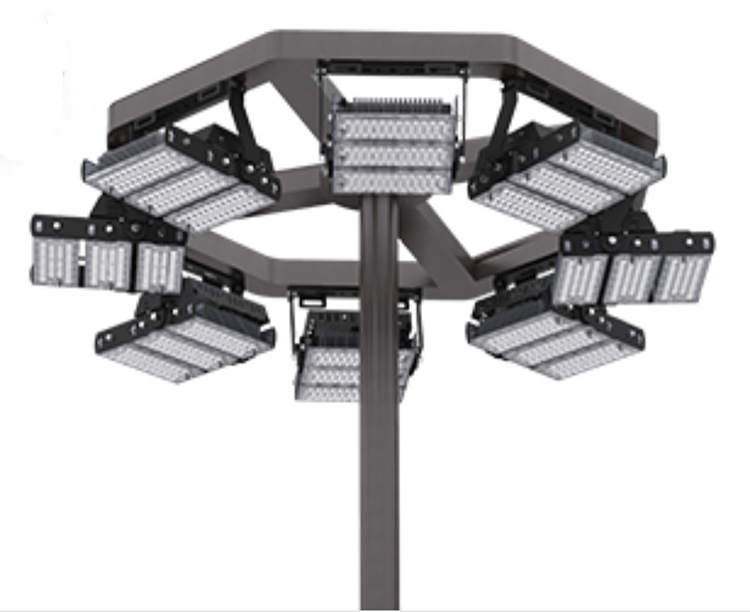

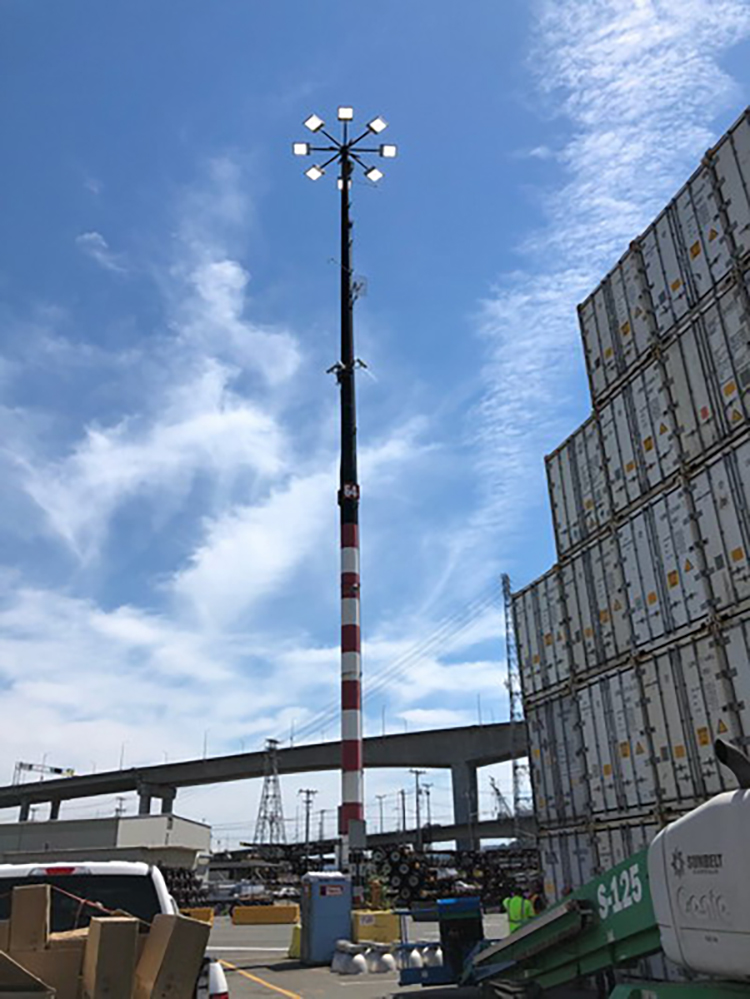

High power LED flood light for football soccer stadium basketball baseball cricket court high mast wharf pier etc.

LED stadium light
LED stadium light

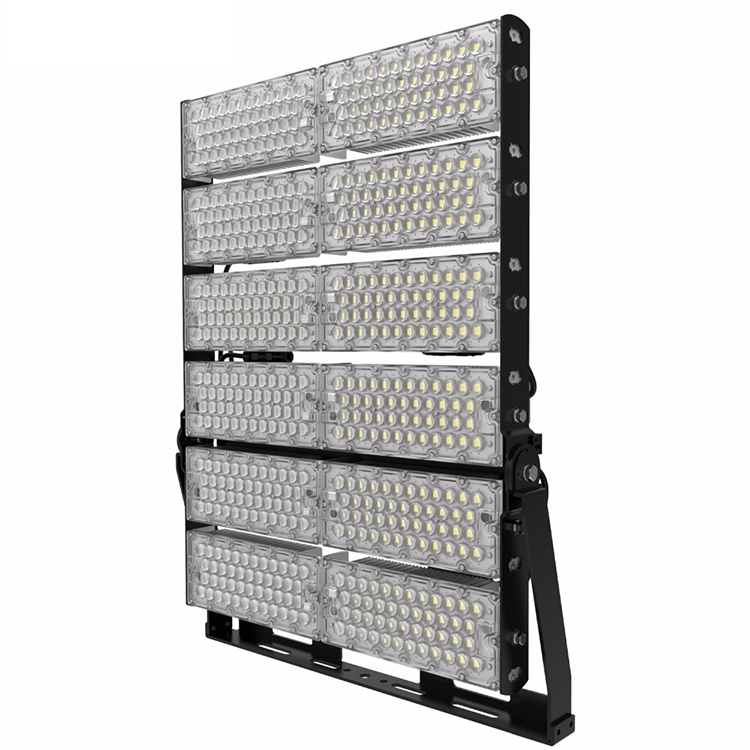

1440W

LED stadium light:                  SEL-1440W

LED stadium light

1200W

LED stadium light:                  SEL-1200W
LED stadium light

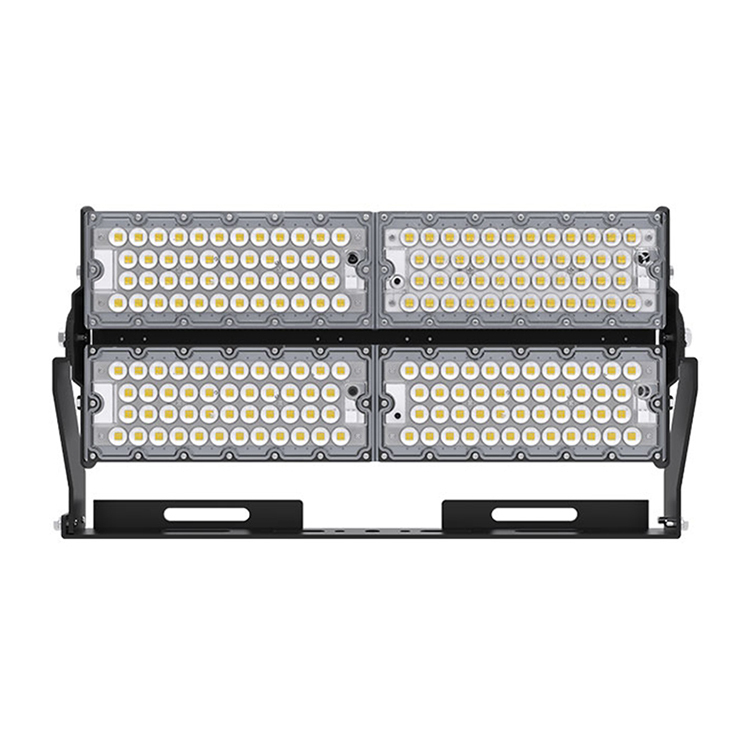

960W &800W

LED stadium light:                  SEL-960W
SEL-800W
LED stadium light

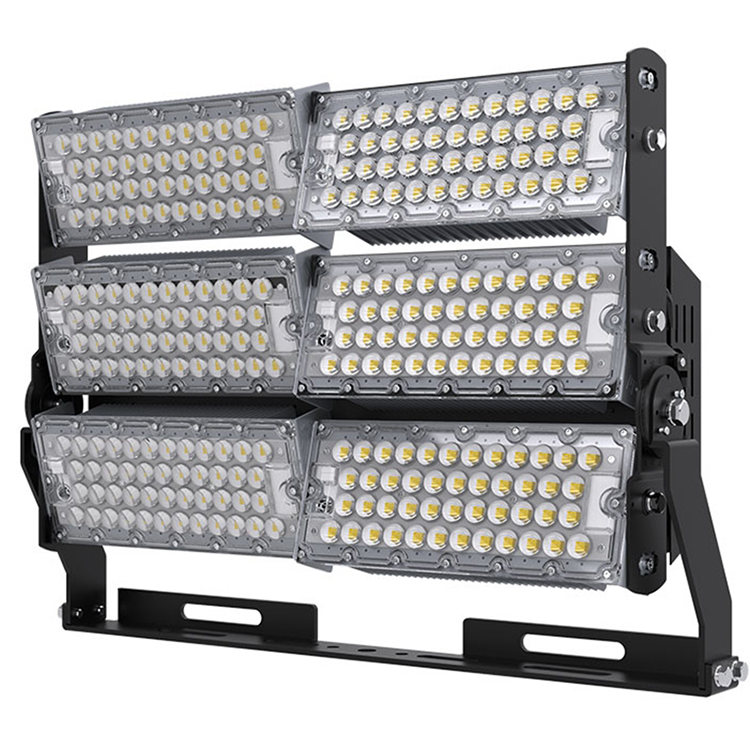

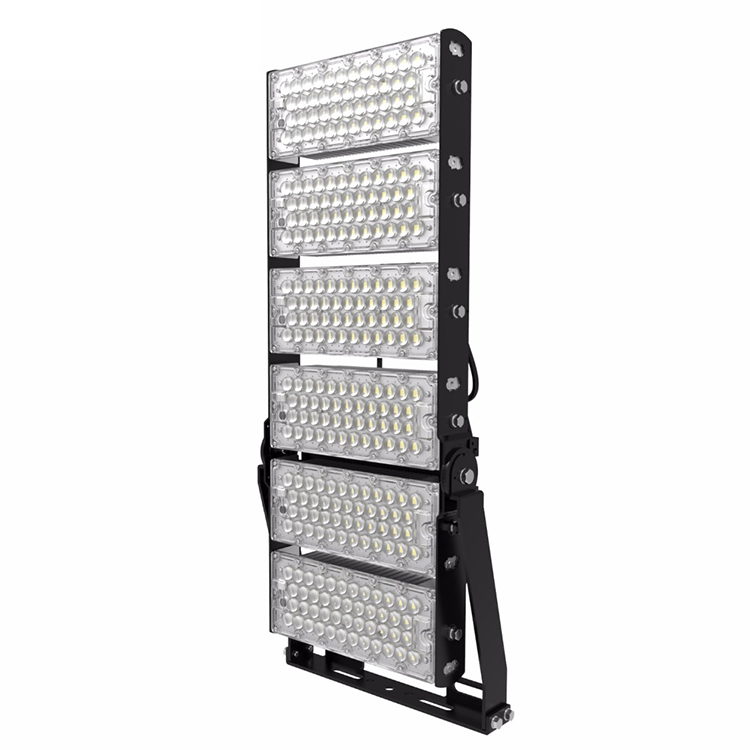

720W&600W

LED stadium light:                  FA-ST-720WB
SEL-600WB
LED stadium light

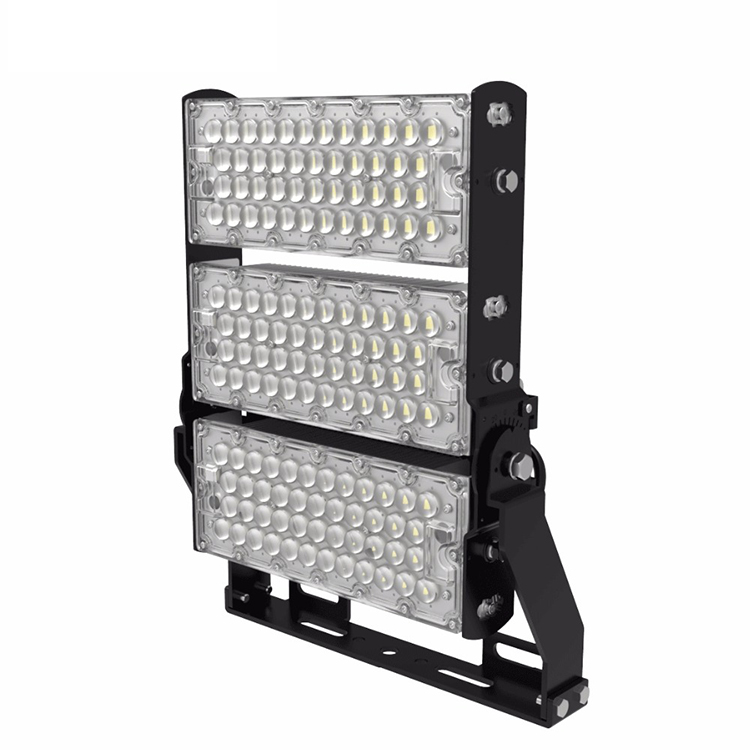

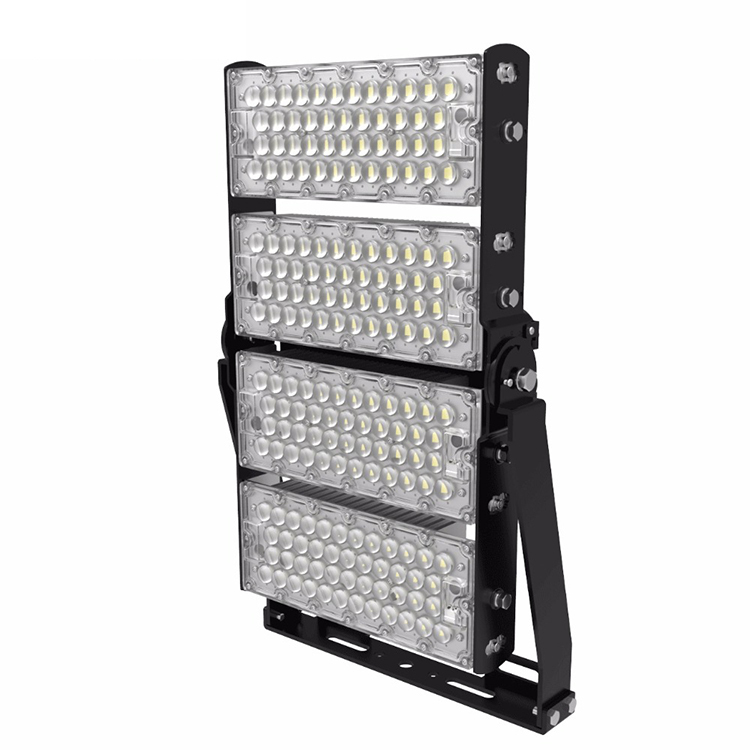

480W&400W

LED stadium light:                  SEL-480WB
SEL-400WB
LED stadium light

720W&600W

LED stadium light:                 SEL-720WA
SEL-600WA
LED stadium light

480W&400W

LED stadium light:                  FA-ST-480WA
SEL-400WA
LED stadium light

300W

LED stadium light:                SEL-300WA
LED stadium light

240W&200W

LED stadium light:                  SEL-240WA
SEL-200WA
LED stadium light
LED stadium light
LED stadium light

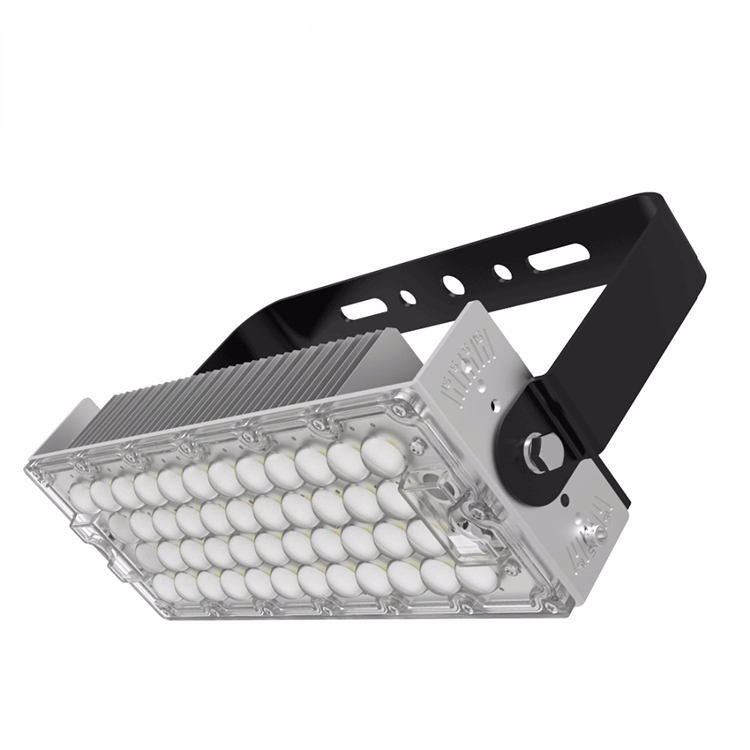

120W&100W

LED stadium light:            SEL-120WA    /    SEL-100WA

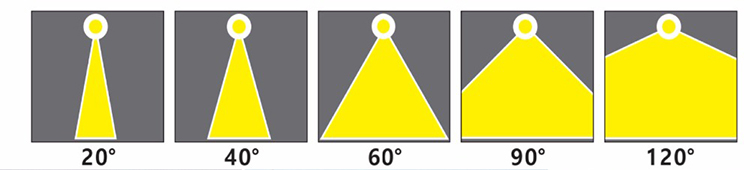

LED stadium light multiple beam angle options

20° is default (If need 40 °/ 60° / 90° /120° with Milky cover, please leave messags)

LED stadium light
LED stadium light

Additional information

POWER

500-1500W

INPUT

100-277VAC

IP Rating

IP66

Lamp Body Material

aluminum

Working Temperature(℃)

-40-60 degree

beam angle

30 / 60 / 90 / MBP20 / MLP30 / MBP70 / BP45

Application

Sports stadium, Outdoor sports fields
